Long Range Wireless Video Receiver HD Digital Recorder Receiver 17"

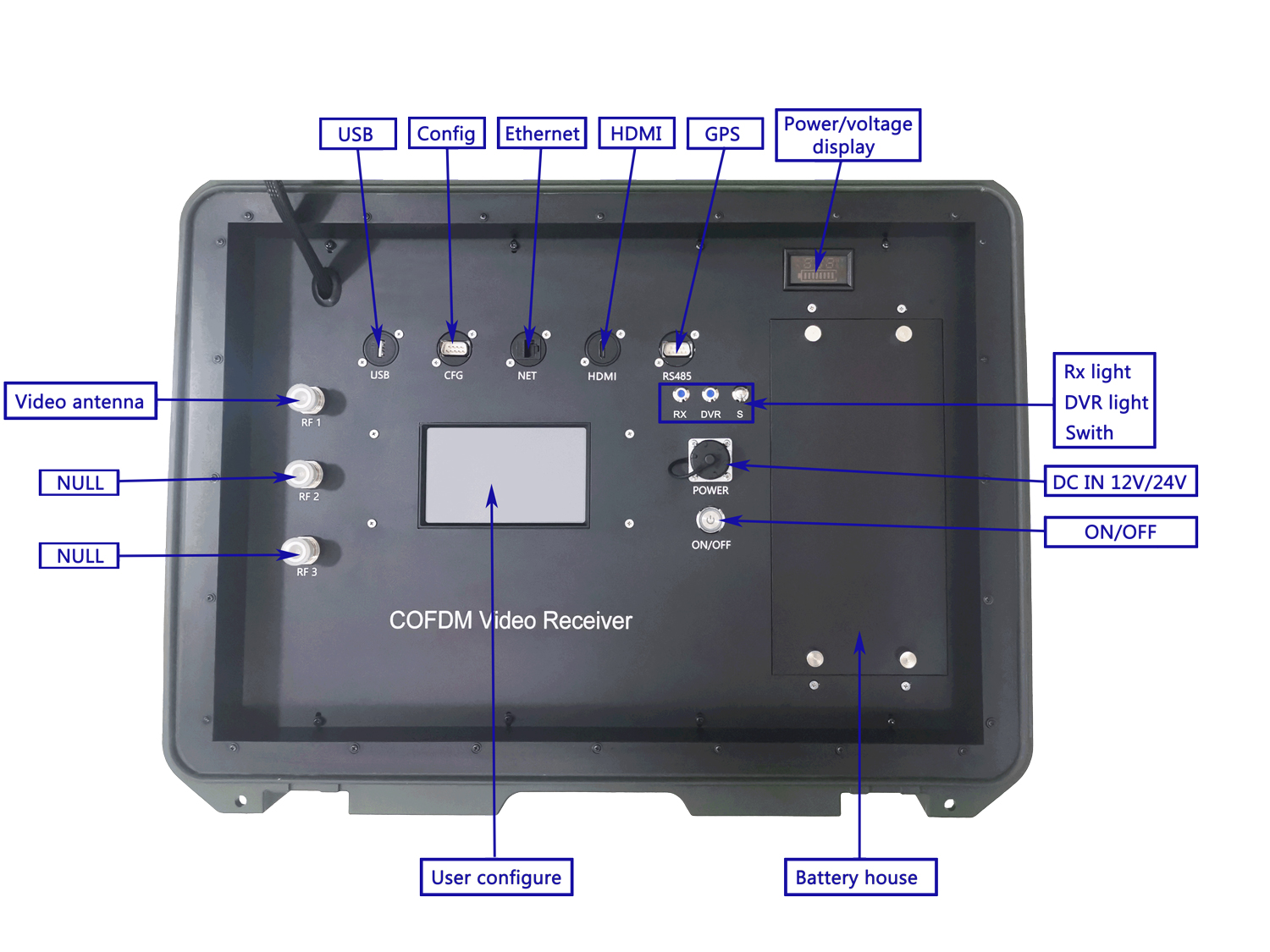

Unichannel Portable Wireless COFDM Audio Video Receiver (KP-DRB01) is a single channel COFDM receiver,,which has internal menmory of 1TB and SDR 100 G.

It's with the COFDM modulation, has strong anti-multipath interference. Besides, it can simutaneously transmit signal, audio and video within a short time.

KP-DRB01 has a wide LCD monitor(15 or 17 inch) and supports remote control and video surveillance

1.Standar DVB-T reception, dual aerial receiption;

2.Special designed with 15/17inch LCD monitor DVR;

3.Unichannel Video audio recording and monitoring;

4.Internal 60G/1000G SSD memory;

5.With video server, support remote image monitor,

7.Dynamic IP,support IE browsing

8.Support remote control and video surveillance

Specifications:

Receiver System Indicators
Frequency(video)	300-800MHz(optional); 1.0-1.5GHz(customized)
Frequency(Data)	200-270MHz(adjustable)
Receive sensitivity	-105dBm
RF Interface	N(F)
Modulation	COFDM
Channel	1ch
Bandwidth	2/2.5/4/8MHz(adjustable)
A/V Output	BNC//RCA
Data output	RS485/RS232/RS422 (optional)
FEC	1/2,2/3,3/4,7/8
Guard Interval	1/32,1/16,1/8,1/4
Video format	1 line NTSC/PAL analog video(auto-adaptation)
Revolution	Standard 720P
Lines of horizontal	625 or 525 Line
Audio Output	Analog stereo left and right channels
Data encryption	AES 256 bit
Power supply	AC220V / DC12V
Constellation	QPSK,16QAM
Memory	60G SSD, support 48hours continuously recording
Work environment	-30~70℃
Video format	1 line PAL/NTSC video signal (auto-adaptation)
LCD monitor	15 or 17 inch
Weight	18 kg
Size	37*49*22 cm
