COFDM EXPERT Mobile Video Wireless Communication
9 Years
| Ask Lasest Price | |
| Brand Name : | Kimpok |
| Model Number : | KP-OMA15 |
| Certification : | CE/FCC/ROHS |
| Price : | Negotiaiton |
| Payment Terms : | T/T, Western Union,PayPal |
| Supply Ability : | 3,000pcs per month |
| Delivery Time : | 3-7 days |

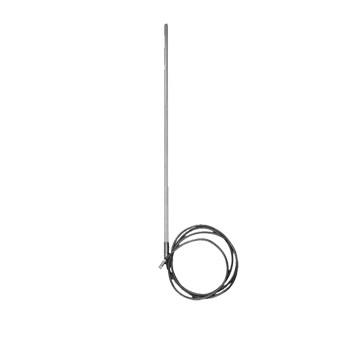

15dBi FRP Omni Antenna 380MHz High Gain Antenna For Outdoor Wireless Transmission
Specifications:
Frequency Range | 400~480MHz |
Bandwidth | 80MHz |
Gain | 5.5dBi |
Beamwidth | 53° |
F/B ratio-dB | 14 |
VSWR | ≤1.5 |
Polarization | Vertical |
Max Power | 100W |
Nominal Impedance | 50Ω |
Connector | N (optional) |
Length | 120cm |
Weight | 200g |
Work Temperature | -30°~ 60° |
Connector | SMA Female or Customization |
Antenna Erection
1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).
2 Erect the antennas to the pole with clamp according to polarization required.
3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.
4 Make a shield for protection the water back into the home before RF cables were acrossed indoor.
|
|
