20km FPV Video Link 300Mhz Wireless Video Transmitter with 8 Channels
Description:

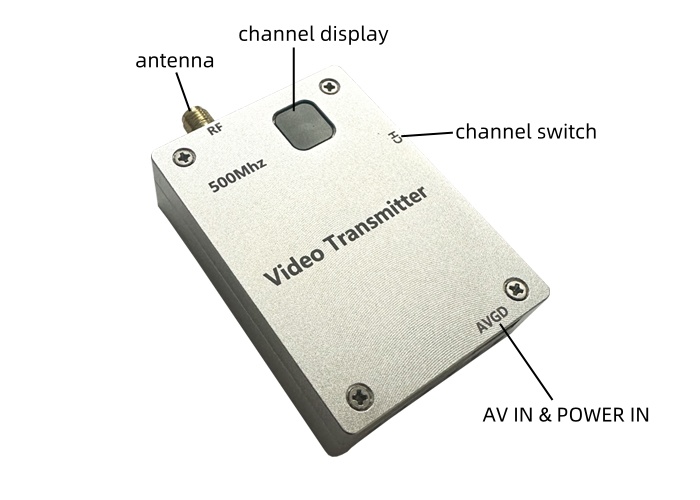

KP-300TX2W is a new arrival wireless video transmission equipment
with non-standard frequency, the frequency band is support from
460-880Mhz, 20Mhz bandwidth. With high power of 2 watt that can
achieve 10-20km LOS from air t ground, and 1km NLOS in city area.
If install with high gain antennas, the transmissoin distance will
be increased too.
Transmitter technology is superb and the special metal with fan is
more conducive to heat, more suitable for long hours of work.
Signal input with common AV interface, it can easily work with
camera, VCD, DVD and all other conventional AV interfaces
compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV/drones
system, UAV, RC airplanes/helicopters, video and audio at the same
time.
VTX Specification:
| Model number: | KP-300TX2W |
| Voltage | DC 12V |
| Modulation | FM |
| Current | 700mA |
| Frequency | 300Mhz~900Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) | 300~400Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) 400~500Mhz: (440Mhz, 460Mhz, 480Mhz,500Mhz, 520Mhz, 540Mhz, 560Mhz,
580Mhz). 800~900Mhz: (860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1Ghz) |
| Video Input | AV |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 60g |
| Dimensions (L * W * H) | 72*46*17mm |
VRX Specification:
| Model number: | KP-RX300 |
| Voltage | DC 12V |
| Receiving sensitivity | -77DB |
| Modulation | AM |
| Frequency | 300Mhz~900Mhz |
| Channels | 8 channels |
| Frequency band (choose one series) | 300~400Mhz: (300Mhz, 320Mhz, 340Mhz, 360Mhz, 380Mhz, 400Mhz, 420Mhz, 440Mhz) 400~500Mhz: (440Mhz, 460Mhz, 480Mhz,500Mhz, 520Mhz, 540Mhz, 560Mhz,
580Mhz). 800~900Mhz: (860Mhz, 880Mhz, 900Mhz, 920Mhz, 940Mhz, 960Mhz, 980Mhz, 1Ghz) |
| Video Output | 1 Vp-p(FM) |
| Audio Output | 1 Vp-p(FM) |
| Audio Carrier Ware | 5.5M 6.0M |
| Temperature | -10℃ ~ +50℃ |
| Antenna port | SMA |
| Transmitter Weight | 19g |
| Dimensions (L * W * H) | 75*45*20mm |
Typical application:
UAV shooting, Police/military secret application
Tactical system, hidden mission
UGV, Surveillance&public safety
FAQ:
Q1: What can I buy from you?
COFDM digital AV transmitter, IP mesh radio, analog video transmitter, radio data transceiver, and transmitter receiver OEM main board.
Q2: Why should I choose you?
Our core R&D team comes from the first-class university in China, major in communication engineering. We believe that wireless communication will keep on developing in professional markets in the future.
Q3: Do you have a minimum order quantity?
No MOQ limit, 1pc is acceptable.
Q4: What kind of product service can I have?
OEM & ODM service.
Q5: What is the product warranty?
We offer two-year-warranty and lifelong maintenance.
Q6: What is the average lead time?
5-7 working days for regular model, and 20-30 working days for customized model.
Q7: What kinds of payment methods do you accept?
We accept bank transfer, Western Union, PayPal, or cash payment.
Q8: Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Country of Origin, and other export documents where required.
Our Service:
· One-stop ODM/OEM solution;
· 24-hour technical support;
· Lifelong maintenance (Replacement parts will be charged after a year);
· Provide professional system design and construction;
· You will get good price and high quality here since we are an experienced manufacturer in wireless microwave transmission area since 2008, we are the source.
|
|
