| Brand Name : | Kimpok |
| Model Number : | KP-MINIA7 |
| Certification : | CE/FCC/ROHS |
| Price : | Negotiation |
| Payment Terms : | T/T, Western Union,PayPal |
| Supply Ability : | 100 PCS Per Month |
| Delivery Time : | 3-7 days |

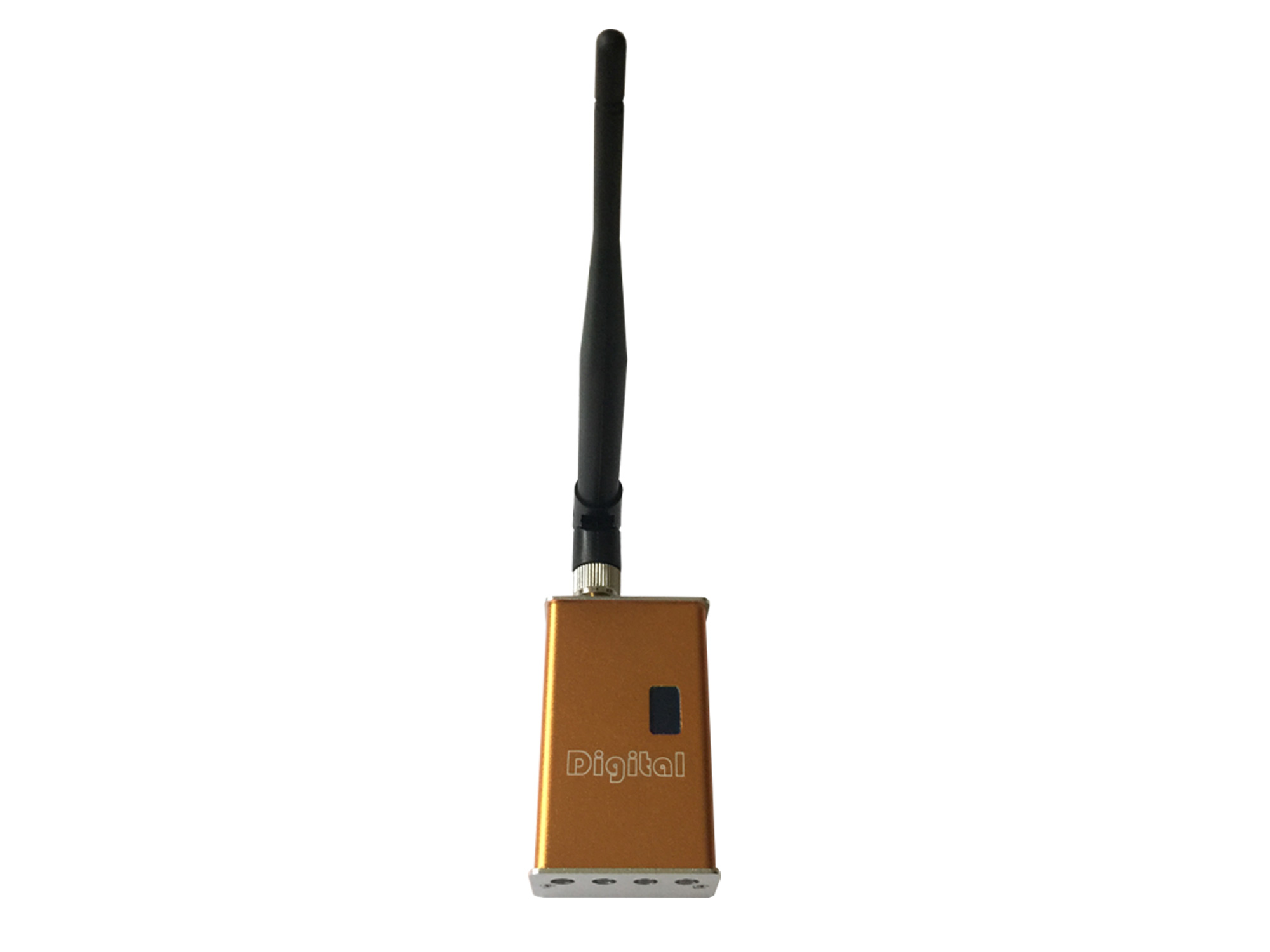

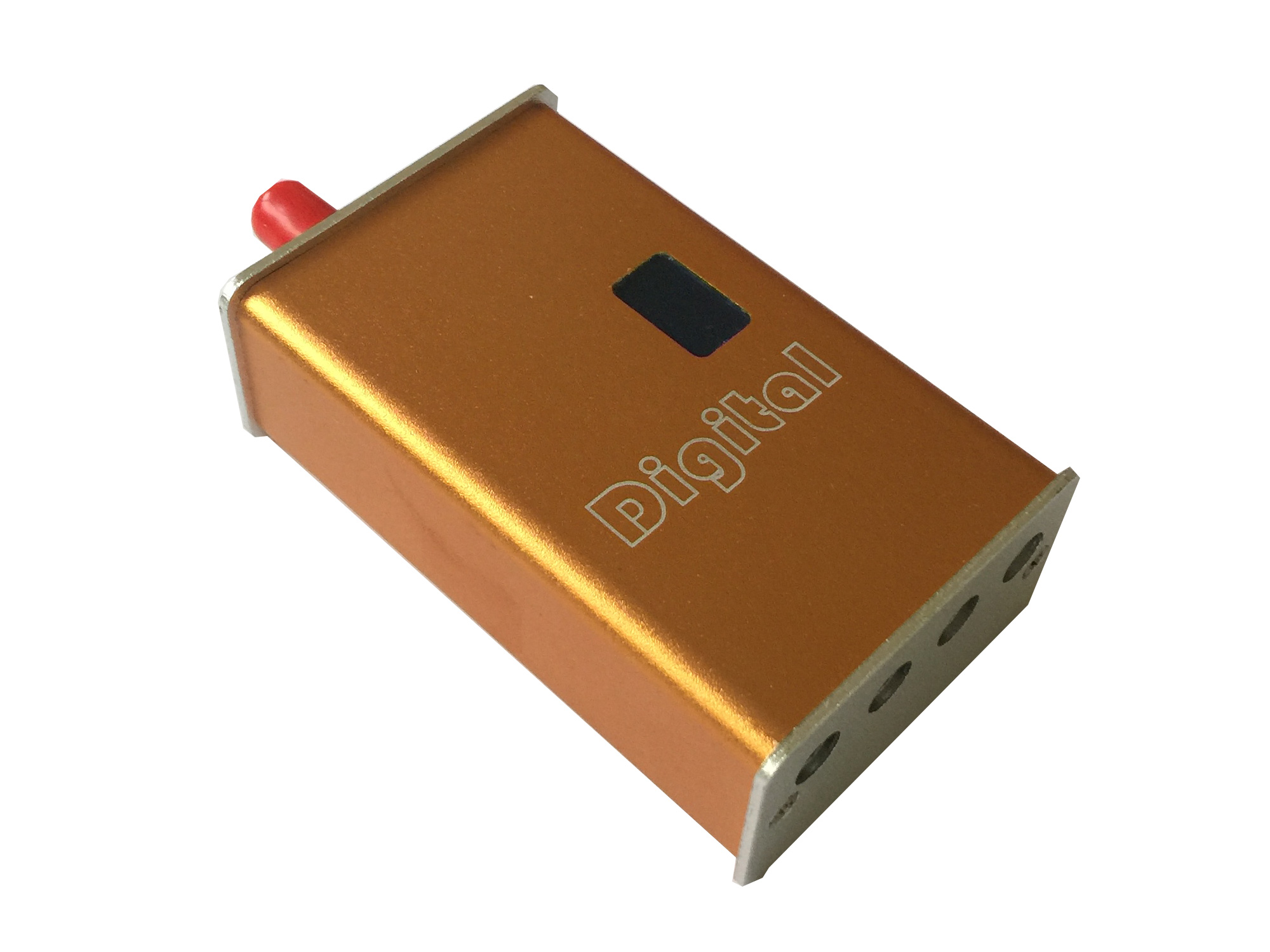

7000mW FPV Video Link Lightweight Drone Wireless Transmitter 1.2Ghz Long Range Image Sender
Description:
KP-MINIA7 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area to ensure the transmission 5-10km or so, if the
raising of the high gain directional antenna, increased to 12KM
away, it can be reach up to 100KM on UAV/helicopters. And transmitter technology is superb and the special metal is more
conducive to heat, more suitable for long hours of work. Signal
input with common AV interface, it can easily work with camera,
VCD, DVD and all other conventional AV interfaces compatible.
It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Specification:
Transmitter parameter:
| Output | 36dbm(7W) |
| Current Consumption | 1.5A |
| Frequency | 1.2Ghz |
| Channel | 4 channels |
| Output impedance | 50 Ohm |
| Audio input impedance | 1k Ohm |
| Video input amplitude | 1.2Vp-p |
| Voltage | DC 12V(at 36dbm) |
| Working current | 700mA |
| The lowest Voltage | DC 5V(at 31dbm) |
| Weight | 100g |
| Size | 74*56*36mm |
| Accessories | transmitter, antenna, Tx cable |
Receiver parameter:
| Frequency | 1.2Ghz |
| Channel | 12 channels |
| Working voltage | DC 12V |
| Current consumption | 260mA |
| Weight | 115g |
| Size | 115*80*21mm |
| Accressories | receiver, antenna, AV cable |
|
|
