COFDM EXPERT Mobile Video Wireless Communication
9 Years
| Ask Lasest Price | |
| Brand Name : | Kimpok |
| Model Number : | KP-HD105 |
| Certification : | CE/FCC/ROHS |
| Payment Terms : | T/T, PayPal, Western Union |
| Delivery Time : | 3-7 days |

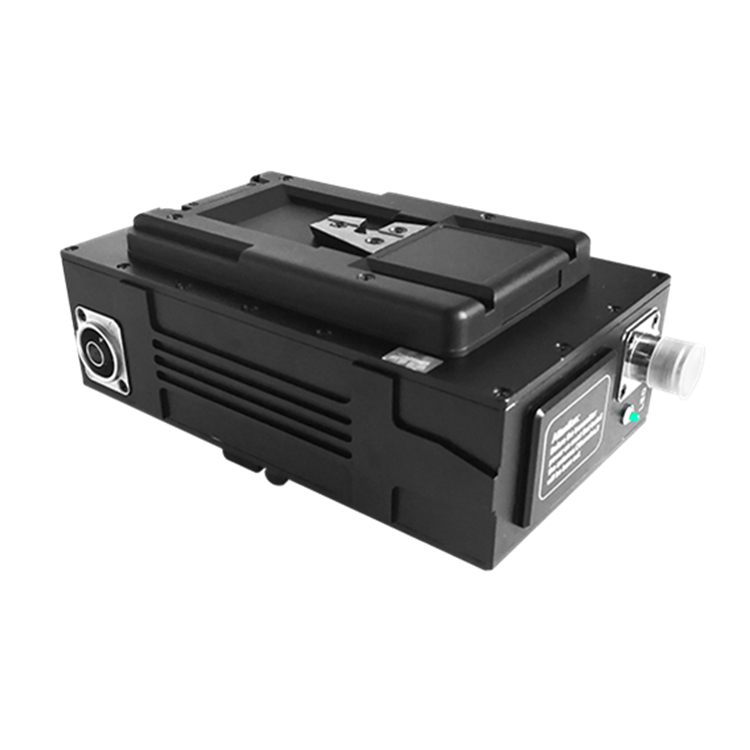

Live Broadcasting COFDM HD Video Transmitter 1080P Long Range Wireless Transmitter 1-8W Adjustable
1080P Full HD COFDM Transmitter Feature:
Specifications:
| Power supply | |
| DC Input | DC11-16V |
| Working Current | 1.9A@12V |
| Output Power | 1~8Watt |
| Video transmission: | |
| Frequency range Output | 300-900MHz(optional), 1.0-1.4G/2.3-2.5G/4-4.4GHz(customized) |
| Modulation | COFDM,2K ,QPSK |
| RF bandwidth | 4/8MHz(adjustable) |
| RF Power output | 1-8W(adjustable) |
| SHG | >52dBc |
| Encryption | AES128/256bits |
| Constellation | QPSK,16QAM,64QAM |
| FEC | 1/2,2/3,3/4,5/6, 7/8 |
| Guard Interval | 1/32,1/16,1/8,1/4 |
| Carrier | 2K,8K |
| Flatness | Full band≤2dB,8MHz≤0.5dB |
| AV input | BNC: D1 standard definition HD: HD1080i/1080P, 720P, 576, 480 HD-SDI:HD1080i/1080P, 720P, 576, 480 |
| CNR(weighting) | 58dB |
| Sloping field SNR(unweighted) | ≥50dB |
| Audio transmission | |
| Balanced audio input range | Vmax=±15V |
| Unbalanced audio input range | Vmax=3Vpp |
| Audio channel | Stereo L/R audio channel |
| Standard | SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292, SMPTE 259M-C SMPTE 272M SMPTE 299M |
| Input range | 800±80(mV) |
| Encoding | |
| Audio encoding mode | MPEG1 Layer2 |
| CBER | <2.0E-4 |
| Video resolution | Minimum 1280*720@50i Maximum 1920×1080P/I@60hz |
| Video coding | H.264 |
| Video rate | 500kbps-16.68Mbps(autoadaptation) |
| Max speed rate | 450km/h |
| Format | YCbCr4:2:2 |
| Working Environment | |
| OperatingTemperature | -25℃~55℃ |
| Storage Temperature | -40℃~70℃ |
| Appearance | |
| Dimension | 180*110*85mm(with dual V mounts) |
| Weight | 1.6kg |
Satandard COFDM Wireless Receiver:
|
|
