1.2Ghz Long Range UAV Video Link 40km Wireless Video Transmitter and Receiver

Long distance drone video transmitter Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Specification:

Voltage	DC 12V
Current	700mA
Frequency	1.2Ghz (1080MHz, 1120MHz, 1160MHz, 1200MHz, 1240Mhz, 1280MHz)
Number of channels	6CHs
Transmit Power	8000mW
Video Output	1 Vp-p(FM)
Audio Output	1 Vp-p(FM)
Audio Carrier Ware	5.5M 6.0M
Distance (Open environment)	up to 40km from air to ground

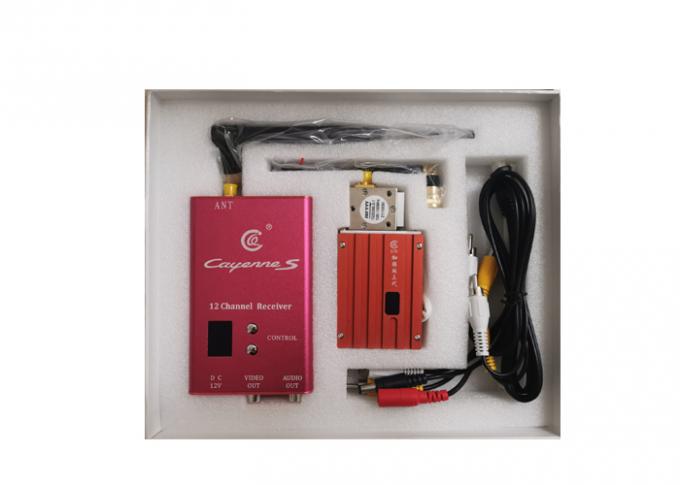

Overall Configuration	Transmitter, AV cable, antenna
Temperature	-10℃ ~ +50℃
Transmitter Weight	200g
Dimensions (L * W * H)	95x50x20mm

Installing:

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
