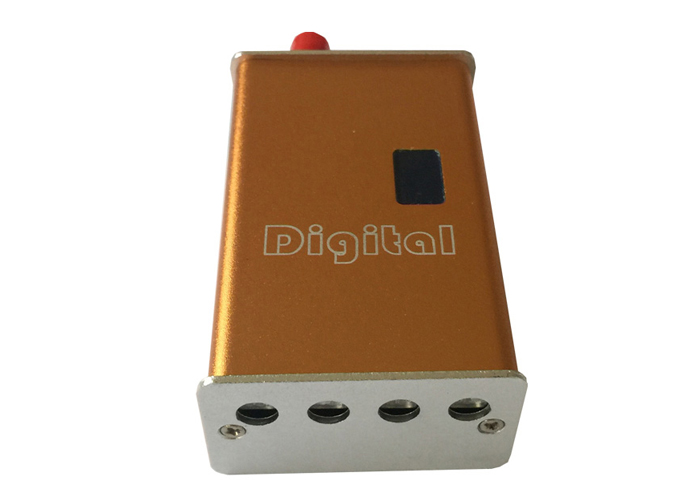

1200Mhz FPV / Drone Wireless Video Transmitter with 7000mW RF Power
Description:
KP-MINIA7 wireless video transmission equipment is an excellent all
aspects of performance are more varieties, and its large power
margin, more suitable for complex physical environment. The use of
0dB (Original small antenna) in full to the antenna, the open area
to ensure the transmission 5-10km or so, if the raising of the high
gain directional antenna, increased to 12KM away, it can be reach
up to 50km on UAV/helicopters. And transmitter technology is superb
and the special metal is more conducive to heat, more suitable for
long hours of work. Signal input with common AV interface, it can
easily work with camera, VCD, DVD and all other conventional AV
interfaces compatible.

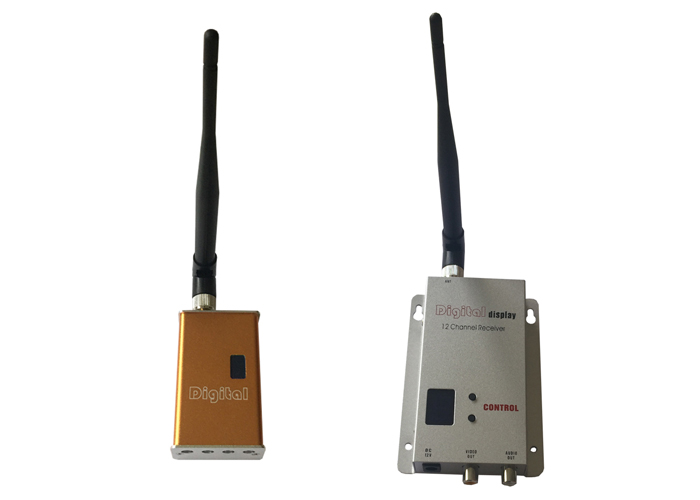

It's not only a professional wireless CCTV transmitter and receiver
for CCTV security projects but also used in the line of FPV system,
UAV, RC airplanes/helicopters, Video and Data signals at the same
time in cars of Unmanned Equipment.
Features:
1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for
long distance wireless transmit projects and special use in
military project.
Specification:
Transmitter parameter:
| Output | 36dbm(7W) |
| Current Consumption | 1.5A |
| Frequency | 1.2Ghz |
| Channel | 4 channels |
| Output impedance | 50 Ohm |
| Audio input impedance | 1k Ohm |
| Audio input amplitude | 1.2Vp-p |
| Video input impedance | 75 Ohm |
| Video input amplitude | 1.2Vp-p |
| Voltage | DC 12V(at 36dbm) |
| Working current | 700mA |
| The lowest Voltage | DC 5V(at 31dbm) |
| Weight | 100g |
| Size | 74*56*36mm |
| Transmission range | 5-10km (LOS on ground); up to 50km LOS from air to ground |
| Accessories | transmitter, antenna, Tx cable, DC 12V, 3A adapter |
Installing:
A. The line has 5 plugs for connecting transmitter, camera and
power supply
One of the line's points connecting to transmitter, another has 4
plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack
B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital
play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking
operation
C. Set the same channel with transmitter and receiver
