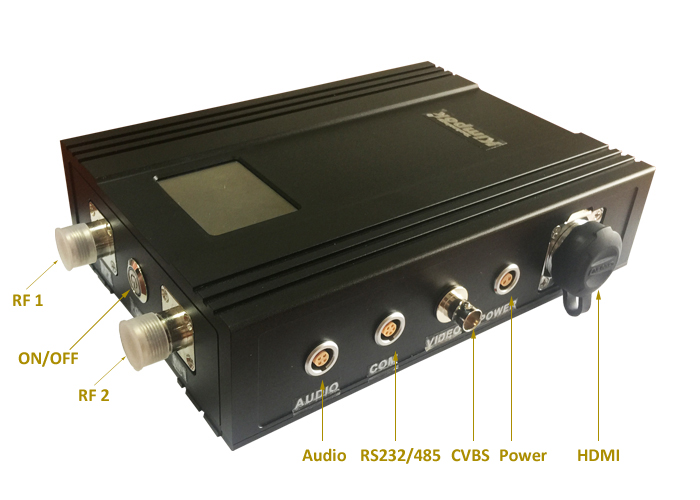

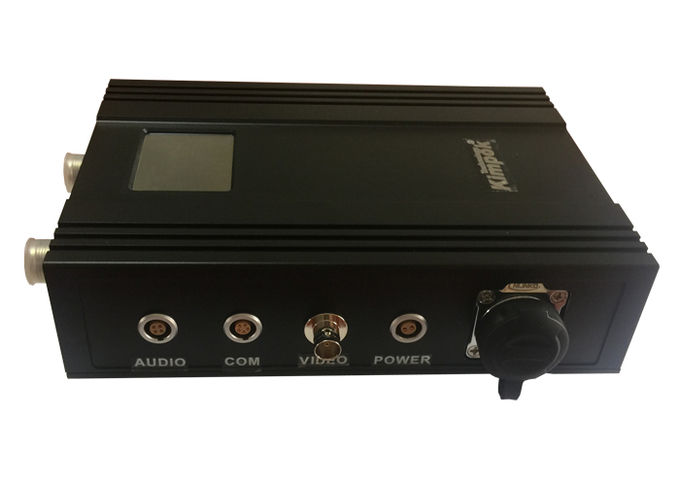

5 Watt Manpack COFDM Wireless Video Transmitter for Military Firefighting Mobile Video Transmission
Description:
KP-HDT5000 is new design backpack full HD AV transmitter,using the core of mobile communication technology COFDM,which can transmit good quality and stable Full-HD digital video signal under the condition of high speed mobile and heavy building blocks transmission in city environment. 2-5W RF power output adjustable.Support full HD 1080P(1080i) H.265 encoding format and HDM-I/HD-SDI inputs (single selection) as well support CVBS stereo balance audio input and narrowband transmission system.
Features:
● COFDM modulation technology ensure the stability of signal
● Support FULL HD quality,1080i/P@30fps;
● Built-in with HD and BNC ports;
● Provide AES128 encryption for video safety.
● It will be HD1080P/i transmission when the RF bandwidth is 4/6/8MHz.;
● 2-5W rf power adjustable
● Low delay time
● With four holes at the bottom of the transmitter for fixed installation
● Widely used in helicopter shooting, Live broadcast and etc…
Specification:
| Frequency | 300-900Mhz (option), or other band customized |
| Modulation | COFDM |
| Consumption | <40W |
| Encryption | AES 128 bits |
| Constellation | QPSK(4QAM),16QAM,64QAM |
| FEC | 1/2 2/3 3/4 5/6 7/8 |
| Guard Interval | 1/32 1/16 1/8 1/4 |
| Carrier | 2K,8K |
| Bandwidth | 2/3/4/6/7/8MHz (option) |
| Video rate | 200kps~20000kps (adjustable) |
| RF power | 37dbm (5W) |
| Video input | HDM-I,CVBS,AHD,SDI (option) |
| Video coding | H.264/H.265 |
| Video resolution | 1920*1080P/I@60fps; 1280*720P/I@60fps; 704*576 PAL |
| Transmission distance | 80-100km LOS from air to ground; 1-3km NLOS on ground station; 10km LOS in city. |
| Working voltage | DC12V |
| Working Temperature | -20℃ -- +55℃ |
| Dimension | 220*150*60mm |
| Weight | 1362g |
| Box colour | Black |
| Antenna port | N type |
Rack-mounted COFDM Wireless Receiver:
Specification:
| DC Input | DC11V~DC16V |
| Working Current | ≤1.1A@DC12.5V |
| Receiving sensitivity | ≤-102dBm @ /4MHz, ≤-95dBm @ /8MHz |
| BER | BER≤1×10-4 |
| Frequency input range | 300MHz~--470MHz |
| Input interface | N(type),Dual antenna diversity reception technology |
| Modulation | COFDM |
| RF bandwidth | 4/8MHz (adjustable) |
| Constellation | QPSK,16QAM,64QAM (optional) |
| Encryption | AES 128/265 bit / ALLTECH Basic scrambling |
| FEC | 1/2,2/3,3/4,5/6, 7/8 (optional) |
| Guard Interval | 1/32,1/16,1/8,1/4 (optional) |
| Carrier | 2K |
| Video formats and amplitude | PAL/NTSC, 1Vp-p/75Ω |
| Video compression | H.264/MPEG-2(autoadaptation) |
| Decode code stream rate | 0.5-12Mbps |
| Video output interface | Composite video RCA,HD,ASI,HD-SDI(alternative) |
| Interrupt recovery | Better than 2S |
| Video channel characteristic | Differential gain DG≤1.5%, Differential phase DP≤1° |
| Audio output | Left and right channel and stereo |
| Dimension | 483*300*44mm(1U chassis) |
| Weight: | 1.5kg |
