Analogue Wireless Video Audio Transmitter and Receiver for Elevator Security 12V DC

Kimpok Technology is the wireless security provider of choice for police departments, private investigators, UAV hobbyist, and federal agencies nationwide, in large part due to our range of wireless video transmission devices. Our selection of state-of-the-art wireless video transmitters and receivers, wireless video links, antennas, and wireless sensors, are designed so you can place your cameras where you need them, without the concern of running video cable.

Our wireless video transmitter and receiver options are used for a variety of demanding applications, including long range wireless video transmission and remote video surveillance. Our 1.2 GHz / 2.4 GHz / 5.8 GHz wireless links offer a cost-effective and scalable wireless solution; these wireless access points let you send multiple camera signals to a single receiver, reducing overall system cost.

Our advanced video audio transmission systems are ideal for critical communications such as Commercial, Government, Military, Industrial, Agriculture, Mining, Oil and Gas, Robotics, and UAV markets, to mention just a few.

Features:

1. Wireless transmission: no need to set up communications cable
2. Image, audio sync, color black and white compatible
3. Small size, light weight, easy to carry, good installation
4. Responsive, timely, send and receive real-time transmission
5. Using FM mode, anti-interference ability, good image quality
6. Highly integrated, stable and reliable transmission distance
7. DC power supply, easy to use.
8. Large output frequency, equipped fan in it, credibility, use for long distance wireless transmit projects and special use in military project.

Transmitter Specification:

Wireless Video Transmitter Installing:

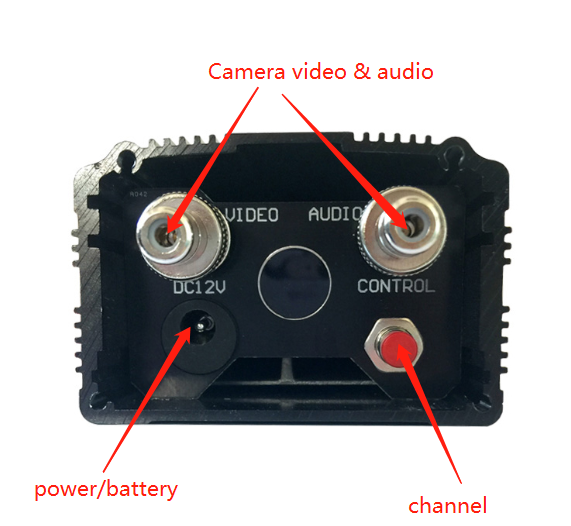

A. The line has 5 plugs for connecting transmitter, camera and power supply
One of the line's points connecting to transmitter, another has 4 plugs (red, yellow, white, black)
Red plug connect DC 12V/1000mA, can also connect battery
White and yellow plug connect to camera's audio and video apart
And black one connects camera's power input jack

B. Push the control button, can change the channel of receiver
Meanwhile, push it and last several seconds, can close the digital play and turn into saving power model
Then push it again, can replay
The function can be able to lock channel, so as to avoid mistaking operation

C. Set the same channel with transmitter and receiver
