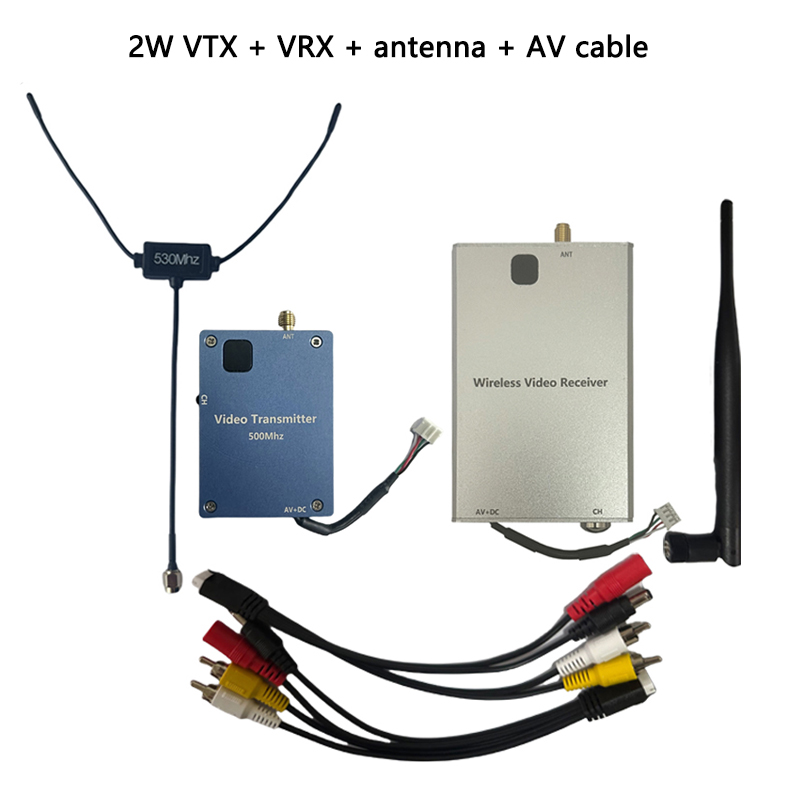

500Mhz FPV VTX 12V~36V Non-standard Frequency Wireless Video Transmitter 2W

Description:

KP-500VTX2W is a brand-new wireless video transmission device, which adopts FM modulation mode and brand-new frequency, avoiding the 1.2Ghz/1.5Ghz/2.4Ghz wireless transmission that has been used more in the same range, avoiding the same frequency interference, and is more suitable for use in complex environments. The receiver sensitivity is -85dBm, and the transmitted image is clear and stable. With a ground high-gain antenna, it can transmit 1~2km in the open area of the city, and about 20km in the air-to-ground LOS (the transmission distance is different in different environments, and the specific transmission distance depends on the actual working environment).

The transmitter is exquisitely made of special metal, and also has a high-speed fan, which is more conducive to heat dissipation and more suitable for long-term work. The signal input adopts a universal AV interface, which can be easily compatible with all conventional AV interfaces such as cameras, VCDs, DVDs, etc.

KP-500VTX2W is not only a professional wireless CCTV transmitter and receiver for CCTV security projects, but also can be used for video transmission of FPV systems, drones, model aircraft/helicopters, unmanned equipment vehicles, etc. (data and encryption are customizable).

VTX Specification:

VRX Specification:

Kimpok Technology is a leading of High-tech global enterprise in developing and manufacturing. Company established in 1998 and located in Shenzhen China. Specializing in the provision of advance wireless microwave communication system to the broadcast, UAV, public surverillance and defense industries. By continuously investing in innovation and combining exceptional products and services, Kimpok offers superior solutions that enable our customers to do their jobs even more effectively.

Kimpok Technology has a very strong technical team and R&D capacity. we dedicated to developing the high level wireless mobile video surveillance system for application of Law enforcement and military, field forces, radar, R/C helicopter, security & protection, government departments, military, security systems, oil field, Vessel, large mines, factories and so on.

Last for 15 years, Kimpok Technology continually concentrate on researching and innovating in the wireless high speed mobile video transmission industry based in LOS/NLOS environments,especial for Unmanned aircraft vehicle(UAV), airborne area and soldier man-pack areas. COFDM modulation and TDDworking mode transmitter/receiver are our demonstrable advantages.All the products production must be in very strict quality management by using US original (HP) spectrum analyzer and Germany (Rohde & Schwarz) Network Analyzer.

The transmitter and receiver are with Anti-jamming, high quality image, long range transmission distance, and have a highly appraise in this area. Company’s developing and long-term programming is the key way for leading us to be the leader at this area, we always believe we can do it. We will continually concentrate on researching and innovating in the wireless microwave transmission industry.

Welcome to tell use your needs, we will try to meet your requirements and custom made a special device for you.” Your support and suggestions are our motivation”. We aim to provide our users worldwide exclusive advanced wireless videography system.

Testing Equipments:
